General information about the PSOC™ Edge port
The PSOC™ Edge is designed for next generation responsive compute and control applications, featuring hardware-assisted machine learning (ML) acceleration. The PSOC™ Edge devices are based on high performance Arm® Cortex®-M55, including Helium™ DSP support paired with Arm® Ethos™-U55 and Cortex®-M33 paired Infineon’s ultra-low power NNLite neural network accelerator.
The PSOC™ Edge port supports boards powered by the Infineon PSOC™ Edge family of microcontrollers and currently supports the following MCUs:
PSOC™ Edge E84
Supported boards
The following boards are supported on this port:
Board name |
Connectivity |
Special feature |
|---|---|---|
KIT_PSE84_AI |
Wi-Fi, BT |
60GHz radar, analog microphone, digital microphone, barometric pressure sensor, external flash, speaker interface, IMU sensor, magnetometer, image sensor |
For more hardware-related details, refer to the following sections.
KIT_PSE84_AI

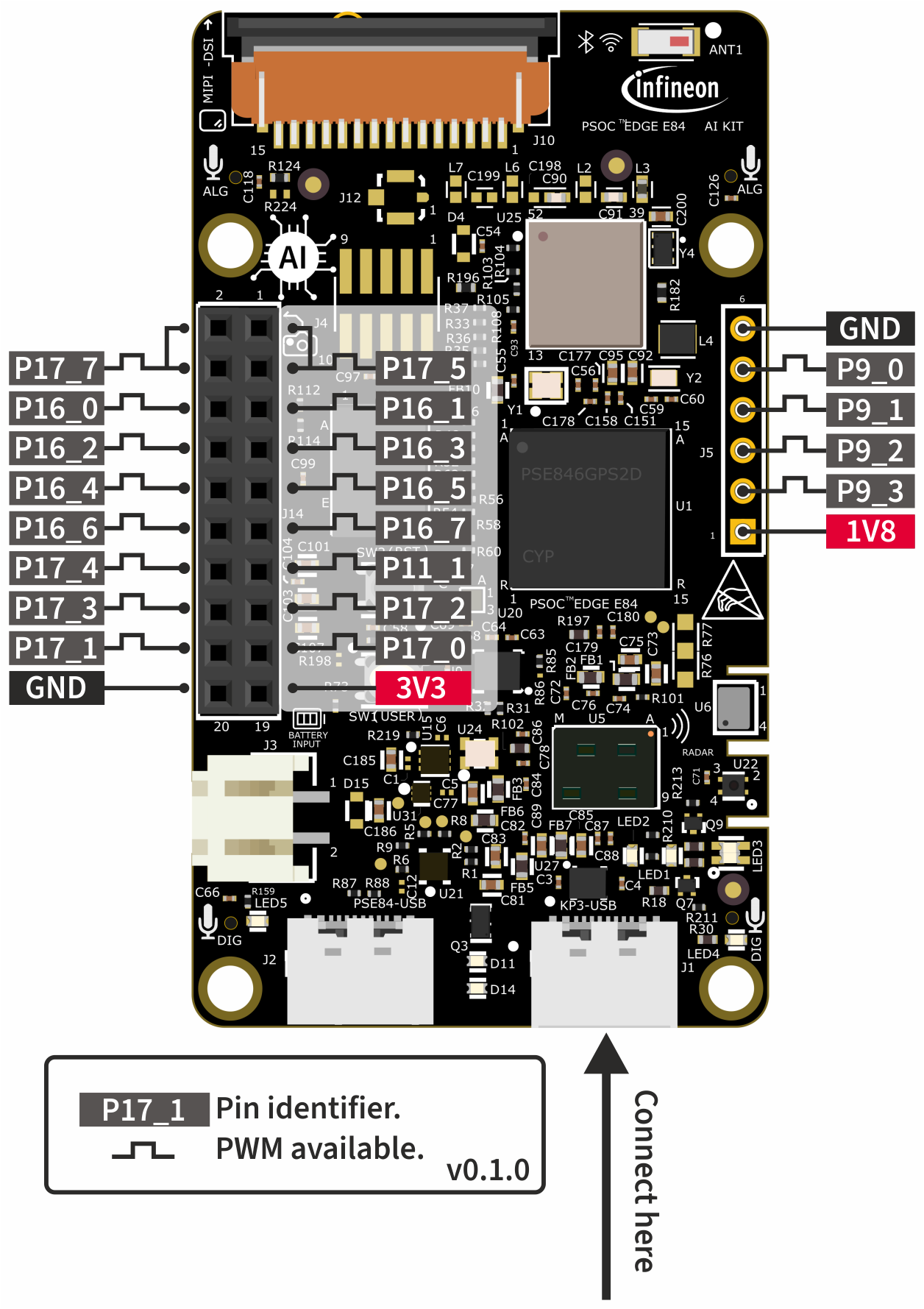

Pinout
Technical specifications
Links for product details:
